10inch 2000W V2 E-Scooter In-Wheel Hub Motor

10inch E-Scooter In-Wheel Hub Motor(50H) 2000W V2 Type

10inch 2000W Hub Motor specially designed for electric scooters, drum brake or disc brake type can be optional, speed can be customized from 30-70KMPH.

Motor Specification:

1. Motor Type: BLDC Hub Motor with Permanent Manget
2. Motor design: Double axle out with 10inch rim
3. Rim size:2.15-10
4. Matached Tire: 3.0-10, 3.5-10
5. Magnet Height: 50MM
6. of Pole Pairs: 23 paris
7. Rated Power: 2000W
8. Peak Power: 4000W
9. Rated Voltage: 72V( 48-96V Can be optional)
10. Speed: 65km/h (30-70km/h can be customized)
11. Max No-load RPM: 850RPM
12. Max Torque: 140N.M
13. Max Efficiency: 88%
14. Continious current:30A
15. Max current:80A (Peak 100A in short time)
16. Brake type: Disc brake or Brum brake(Optional)
17. Rear Fock width for installation: 200mm
18. Winding Core material: Aluminium
19. Cross Section of Phase wire: 8 mm2
20. Hall sensor phasing angle: 120 degree
21. Temperature Sensor: Optional
22. Working Temperature: 70 degree, Peak 120 degree
23. Waterproof Grade: IP54
24. Color: Black or Silver
25. W./ G..W. : 11kgs / 12kgs
26. Package Size: 34*34*33CM

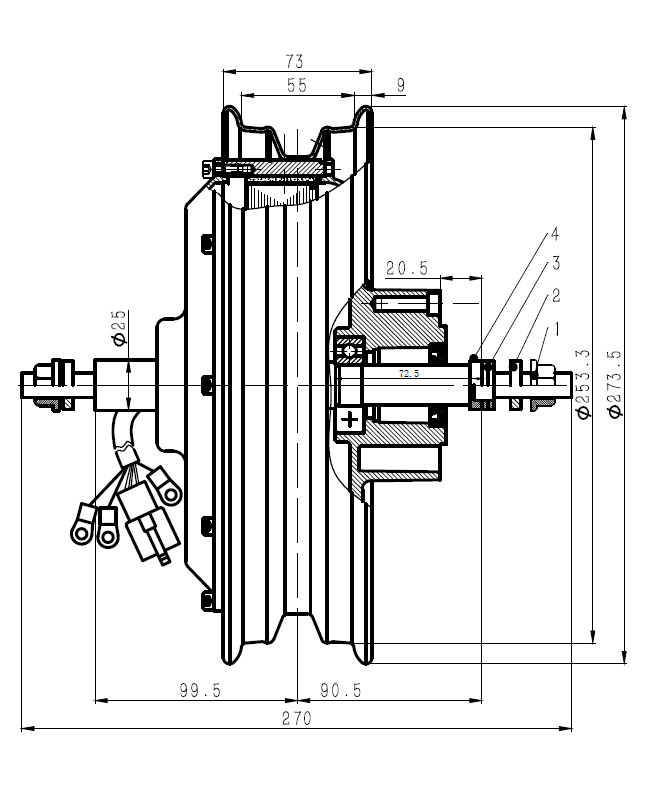

Motor Drawing:
