12inch 8000W V3+ND721000+TFT

12inch 8000W Electric Scooter Hub Motor Kits

QS260 12inch 8000W Hub Motor Kits

With maximum speed around 120kph with extreme acceleration, suitable for 12inch electric scooter upgrade or gas line scooter electric retrofit

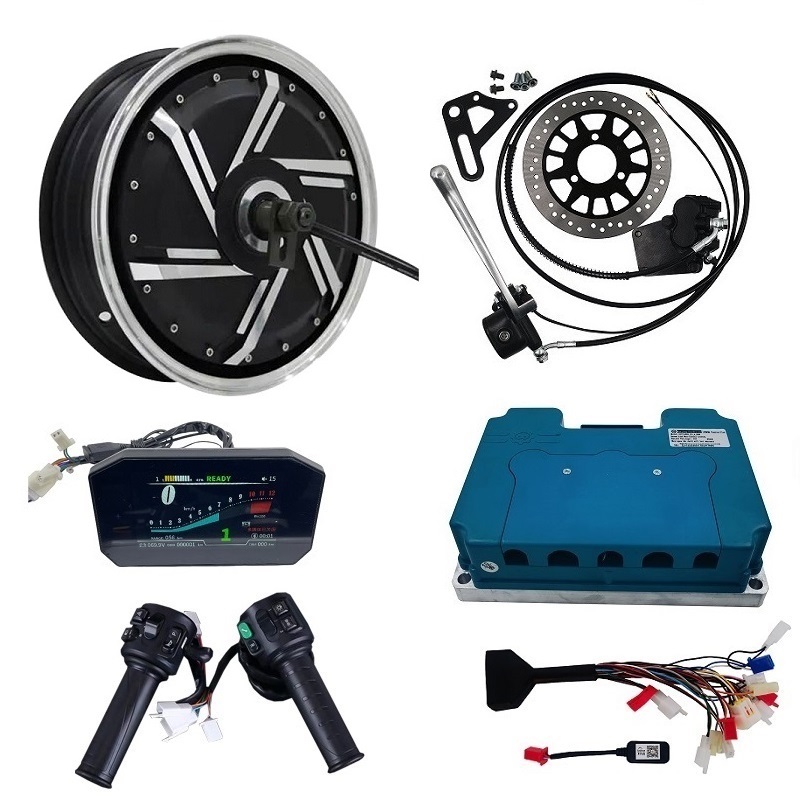

Combo:

1 pcs QS260 12inch 8000W Hub Motor

1 pcs Fardriver Controller ND721000

1 pcs TFT Speedometer

1 pcs Twist throttle



12inch 260 E-Scooter Hub Motor(60H) 8000W V4 Type



Motor Specification:

  1. Motor Type: BLDC Hub Motor with Permanent Magnets
  2. Motor design: Double axle out with 12inch rim
  3. Rim size:3.5×12
  4. Matching Tire: 120/70-12, 130/70-12
  5. Magnet Height: 50MM
  6. Pole Pairs: 16 pairs
  7. Rated Power: 8000W
  8. Peak Power: 15000W
  9. Rated Voltage: 72V
  10. Speed: 100kph
  11. Max Torque:300N.M
  1. Max Efficiency: 89%
  2. Continious current:120A
  3. Max current:200A
  4. Brake type: Disc brake
  5. Rear Fork width for installation: 230mm
  6. Hall sensor: Two group of Hall sensors(Model:SS413F)
  7. Winding Frame material: Aluimium
  8. Cross Section of Phase wire: 16mm2
  9. Hall sensor phasing angle: 120 degree
  10. Temperature Sensor: KTY83-122
  11. Working Temperature: 70-120 degree, Peak 150 degree
  12. Waterproof Grade: IP66
  13. Working system: S9
  14. Cooling method: Natual
  15. Color: Black
  16. W./ G..W. : 20kgs / 22kgs
  17. Package Size: 44*43*34CM
