16inch 5000W In-Wheel Hub Motor(40H) V2 for Electric Motorcycle

16inch 273 E-Scooter In-Wheel Hub Motor(45H) 5000W V2 Type

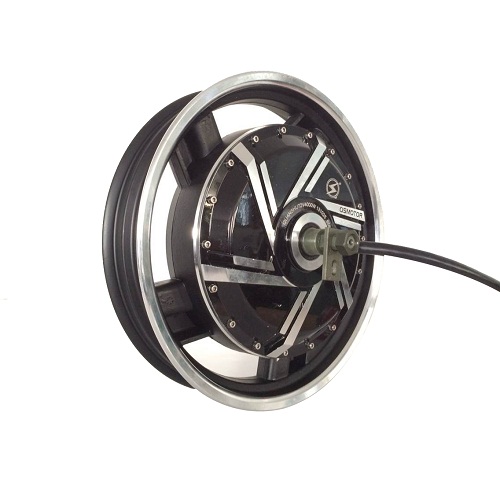

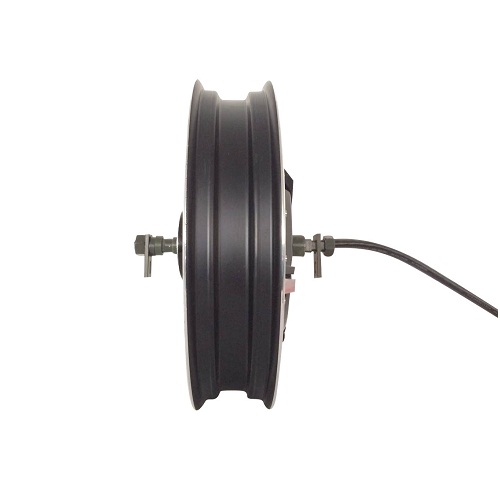

16inch Hub Motor specially designed for electric motorcycle, the rated power can be made 2kw,3kw,4kw,5kw,6kw,7kw or 8kw. Max speed can be customized from 30-120KMPH.



Motor Specification:



  1. Motor Type: BLDC Hub Motor with Permanent Magnets
  2. Motor design: Double axle out with 16inch Aluminium rim
  3. Rim size:3.0×16
  4. Matching Tire: 110/90-16
  5. Magnet Height: 45MM
  6. of Pole Pairs: 28 pairs
  7. Rated Power: 5000W
  8. Max Power:7200W(Peak 10000W)
  9. Rated Voltage: 72V( 60V-144V Can be optional)
  10. Speed: 100km/h (30-100km/h can be customized)
  11. Max No-load RPM:1000RPM
  12. Max Torque: 230N.M
  13. Max Efficiency: 88%
  14. Continious current:78 A
  15. Max current:120A ,Peak 170A
  16. Brake type: Disc brake
  17. Rear Fock width for installation: 200mm
  18. Winding Core material: Aluminium
  19. Cross Section of Phase wire: 16 mm2
  20. Hall sensor phasing angle: 120 degree
  21. Temperature Sensor: Optional
  22. Working Temperature: 70 degree, Peak 120 degree
  23. Waterproof Grade: IP54
  24. W./ G..W. : 21kgs / 22kgs
  25. Package Size: 58*58*40CM\

Motor Drawing

16inch 3.0x16
