qs motor 17inch 8000W

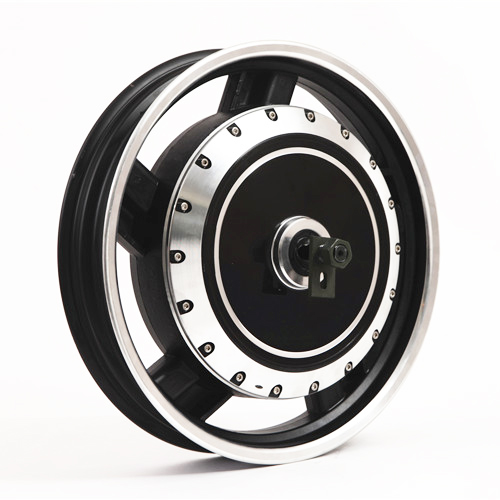

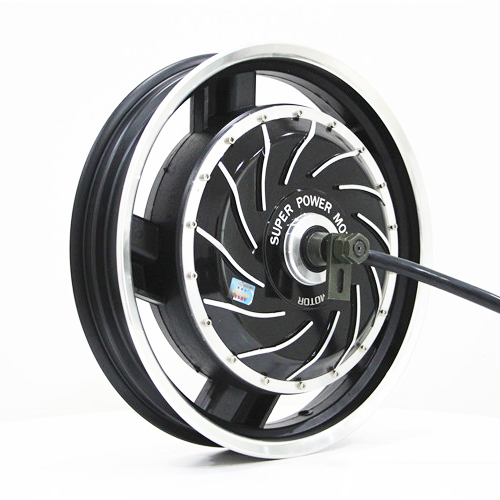

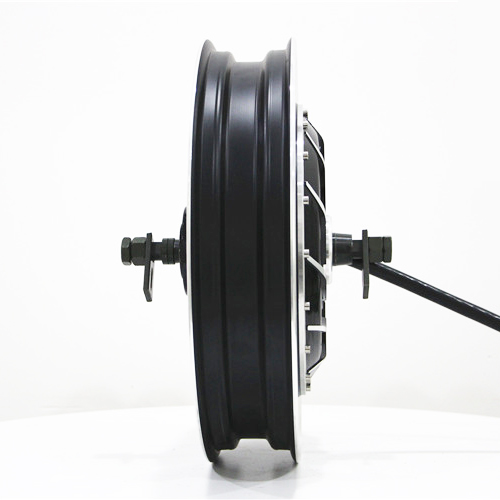

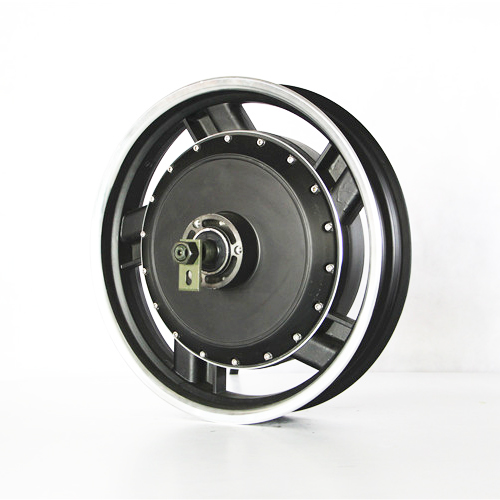

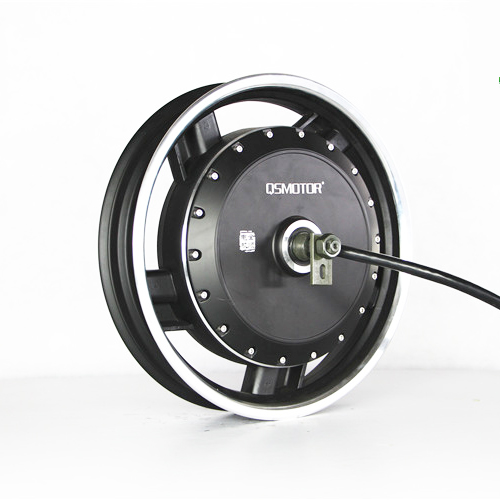

17inch 8000W In-Wheel Hub Motor V3 Type for Electric Motorcycle

 17inch 273 E-Scooter In-Wheel Hub Motor(50H) 8000W V3 Type



17inch Hub Motor specially designed for electric motorcycle, the rated power can be made 2kw,3kw,4kw,5kw,6kw,7kw or 8kw. Max speed can be customized from 30-120KMPH.



Motor Specification:



  1. Motor Type: BLDC Hub Motor with Permanent Magnets
  2. Motor design: Double axle out with 17inch Aluminium rim
  3. Rim size:3.5×17
  4. Matching Tire: 120/70-17
  5. Magnet Height: 50MM
  6. of Pole Pairs: 16 pairs
  7. Rated Power: 8000W
  8. Max Power:11250W(Peak 16000W)
  9. Rated Voltage: 72V( 72-144V Can be optional)
  10. Speed: 115km/h (30-120km/h can be customized)
  11. Max No-load RPM:1160RPM
  12. Max Torque: 200N.M
  13. Max Efficiency: 90%
  14. Continious current:130A
  15. Max current:190A ,Peak 260A
  16. Brake type: Disc brake
  17. Rear Fork width for installation: 200mm
  18. Winding Core material: Aluminium
  19. Cross Section of Phase wire: 16 mm2
  20. Hall sensor phasing angle: 120 degree
  21. Temperature Sensor: Optional
  22. Working Temperature: 70 degree, Peak 120 degree
  23. Waterproof Grade: IP54
  24. W./ G..W. : 25kgs / 26kgs
  25. Package Size: 58*58*40CM

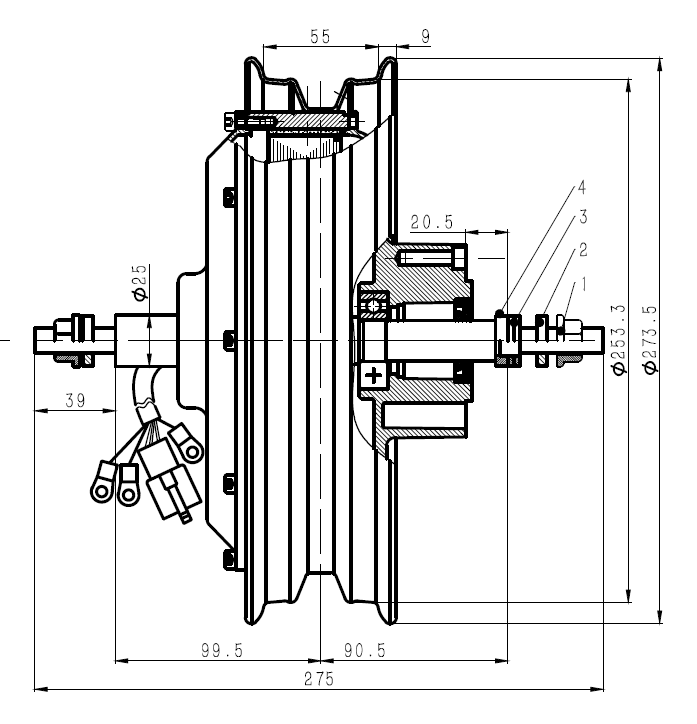

QQ截图20150901151409
