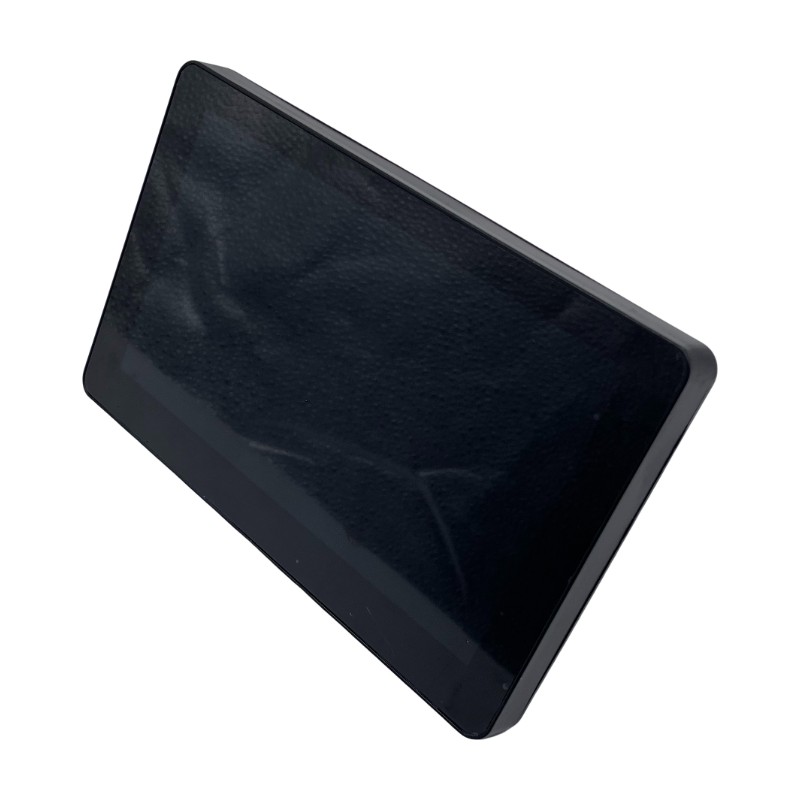

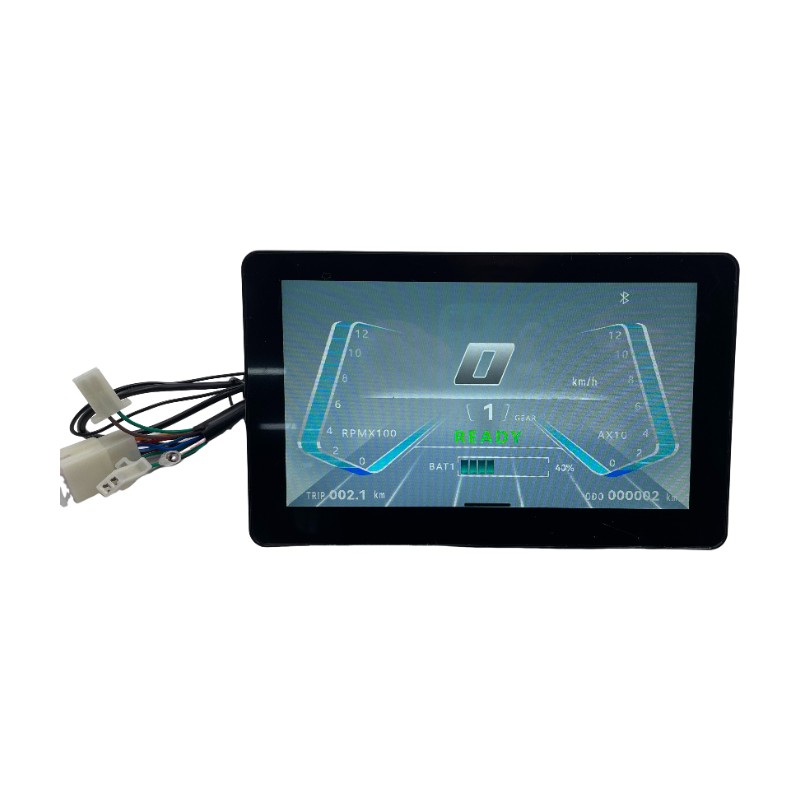

7INCH Electric Vehicle Display Speedometer

7inch Electric Scooter Motorcycle TFT Display With ONE-LIN and CAN-BUS

Functional Description:

1. Mobile phone Bluetooth connects to the mobile Yealink app for
arrow map navigation and Bluetooth call notifications.
2. Bluetooth name: Easyconn-**** (last 4 digits are randomized).
3. Display resolution: 1024*600.
4. Working voltage range: DC10-150V.
5. Compatible with both lithium and lead-acid battery power
displays.
6. Amplifier output: 5W/4Ω * 2 channels.
7. Protection level: IP65, operating temperature range: -20° to +70°.
8. Backend settings include: maximum speed, average speed,
acceleration time, voltage selection, voltage settings, voltage
coefficient, speed coefficient, unit settings, language settings,
mobile app QR code download, and software version view.
9. USB software upgrade functionality.

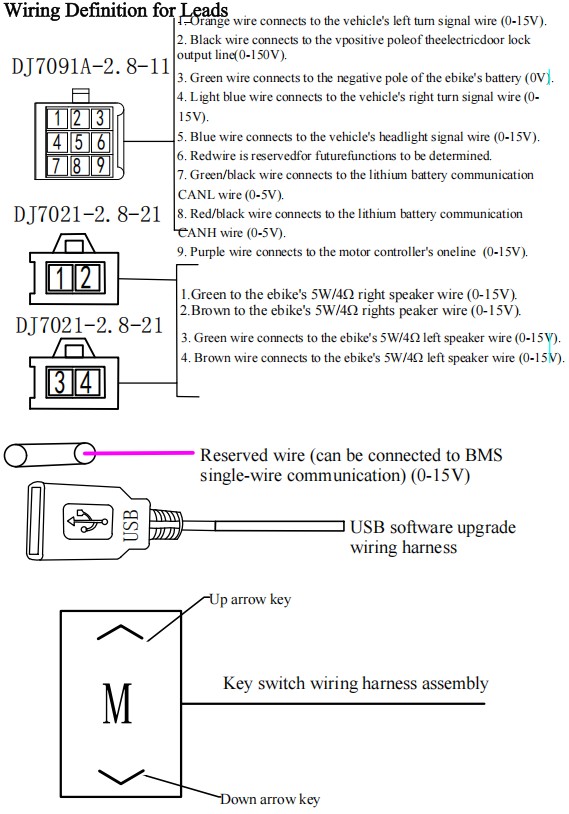

10 .Supports CAN and single-wire communication, Hall Speed Signal
