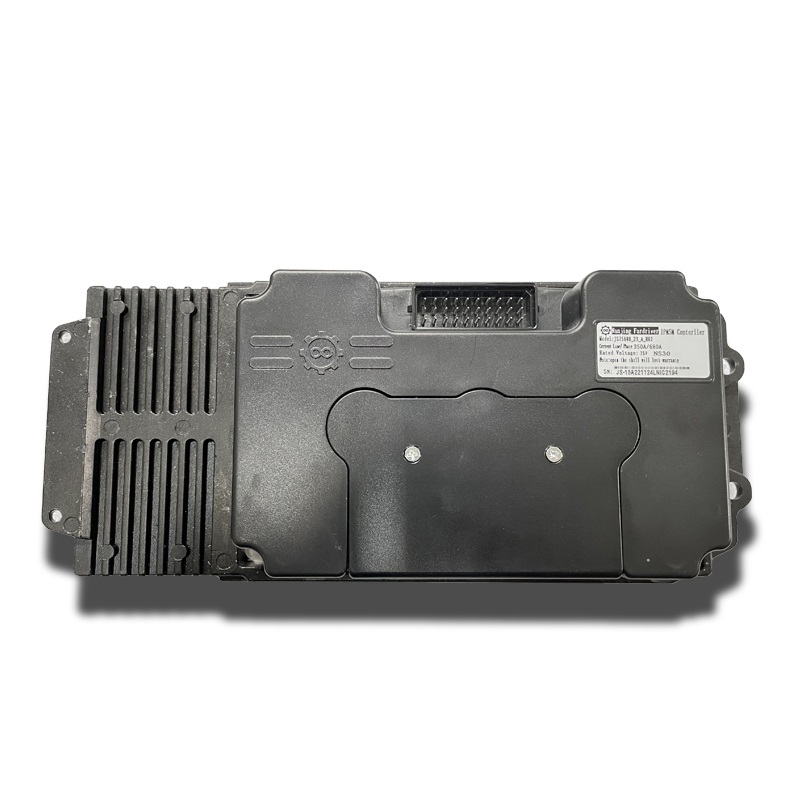

FarDriver Controller NS96680 for Sur-Ron Dirty bike Motorcycle

Fardriver NS96680/ND96680 Electric Motorcycle Controller 680A Programmable with Bluetooth

FarDriver controller is sine wave type controller, which is brushless DC controller with self-learning function. Generally, it matches well with QS Motors, if you want to match with new brand motor, some parameters should be tested by yourself.

Key Features

1). All the raw materials are imported, using high-performance Moss tube

2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board

3). Small in size

4). High efficiency, low temperature rise, small running current

5). With self-learning function, excellent commonality

6). The app compatible with Android and Apple

7). With flux weakening function.(The product does not contain magnetism)

Main Specification:

1. Model Number: NS96680 ( Sometimes the series number also print ND96680)

2. Peak. Bus Current: 350A

3. Peak. Phase Current: 680A

4. Working Voltage: 48V/60V/72V/96V

5. Peak voltage:115V

6. Compatible Motor Power: 3000W-6000W

7. Size: 180mm*118mm*70.2mm

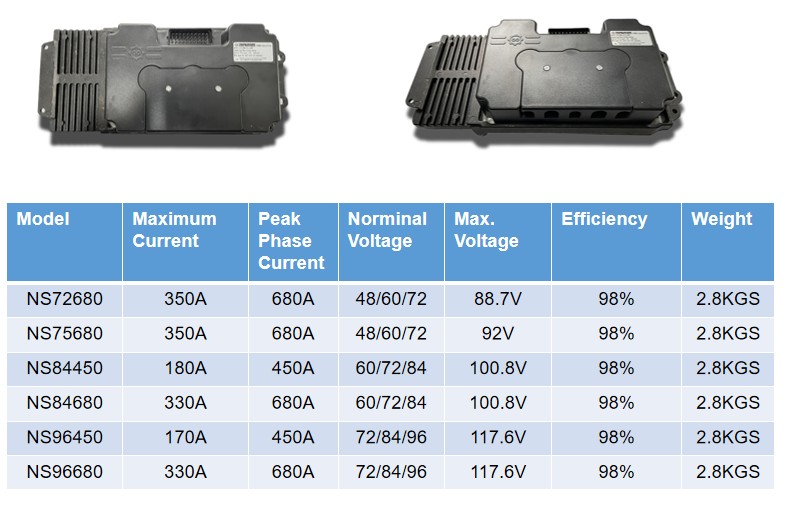

Similar Models:

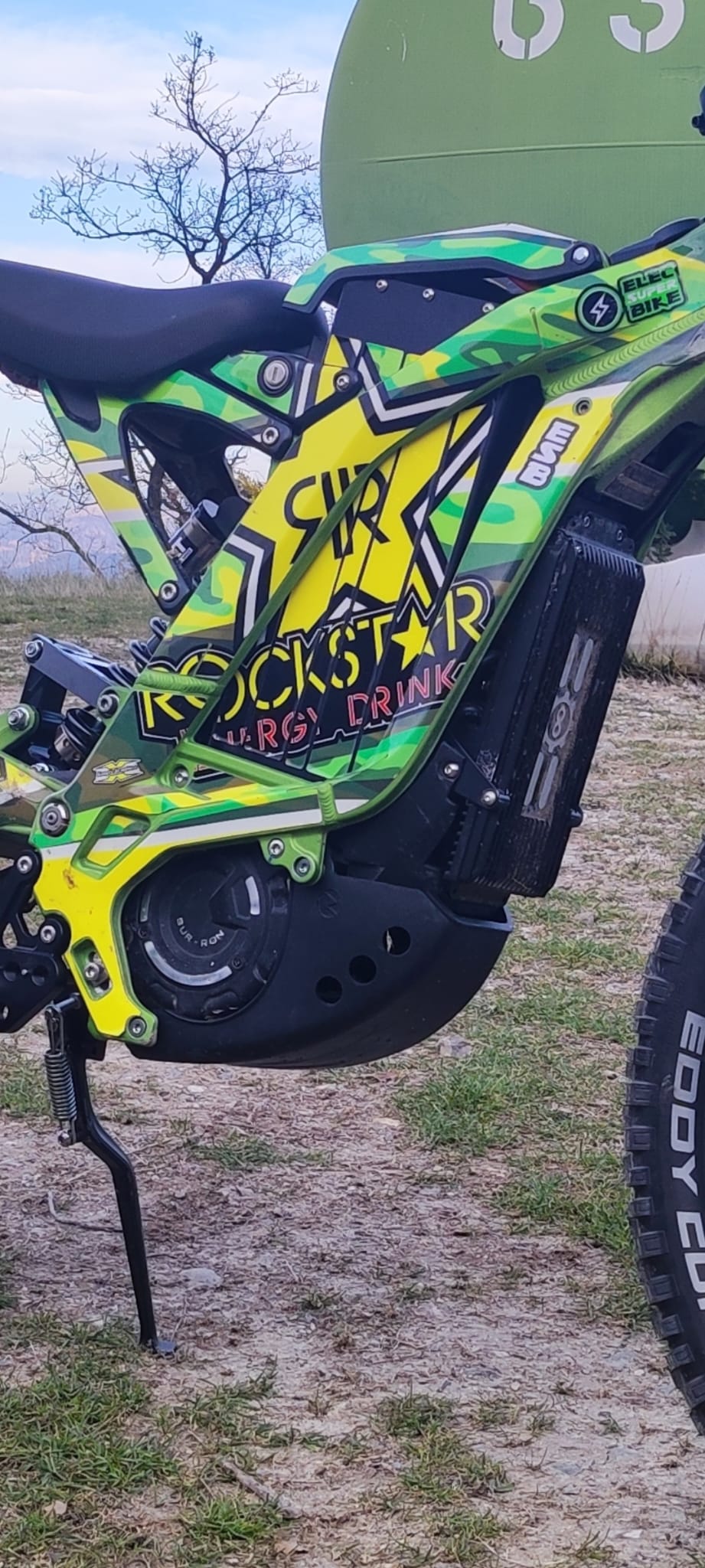

Application:
