12000W 72V Sine Wave BLDC Motor Controller

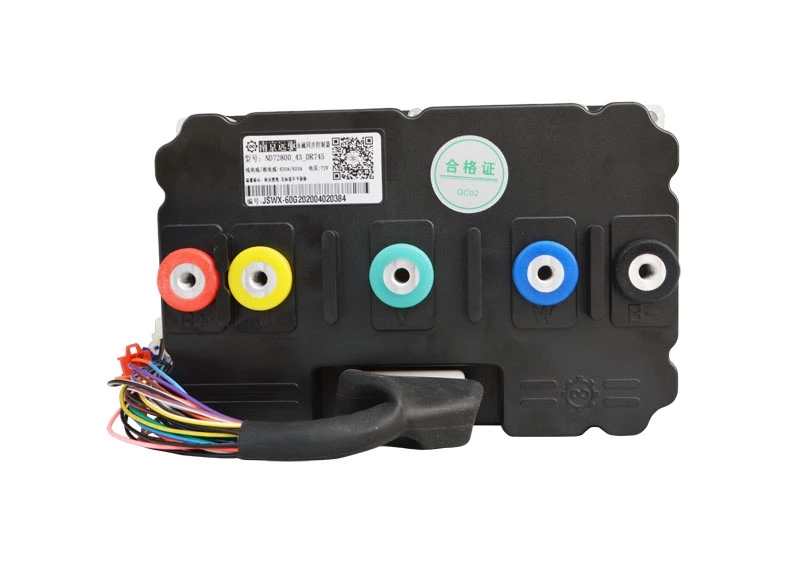

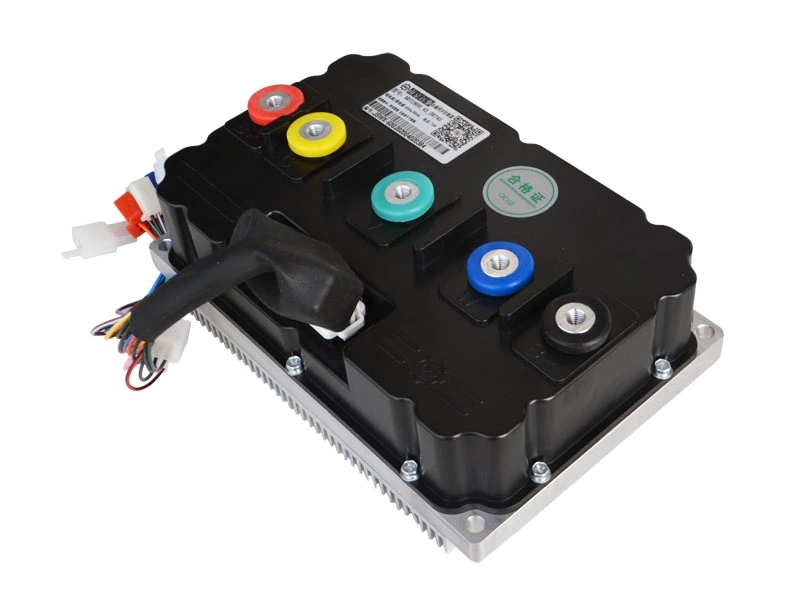

8000W-12000W 72V Electric Scooter BLDC Controller Fardriver ND721200

The Controller package included parts as below,

1 piece Controller

1 piece Programmable Cable for PC or Bluetooth module for Cell Phone

1 piece Complete wiring

1 piece Software(Will be sent by Email)

Features:

The ND series Hall one-line pass-through controller is a high-end high-power permanent magnet synchronous motor controller with the advantages of high quality, high efficiency, and intelligence. It is suitable for vehicle applications of various Hall motors.
It is suitable for middle and high speed motorcycles with in-wheel motors, mid-mounted motors, and high-end electric tricycles.
Using high-quality fully imported MOS core, full metal shielding and aluminum die heat dissipation structure, the hardware
architecture and software implementation are perfectly matched and refined.

Rich software parameter configuration：
* Monitor and configure the controller through the visual computer interface, and update and upgrade online.

* The current at different speeds can be adjusted online.
* The maximum speed of forward and backward, economic speed can be set.
* The overall bus current and phase current can be set.
* The accelerator pedal threshold can be set to adjust the response sensitivity of the pedal.

Perfect protection function：

Monitor working voltage, current, temperature, motor, gear, accelerator pedal, brake, etc. Ensure the safety of vehicle driving control
