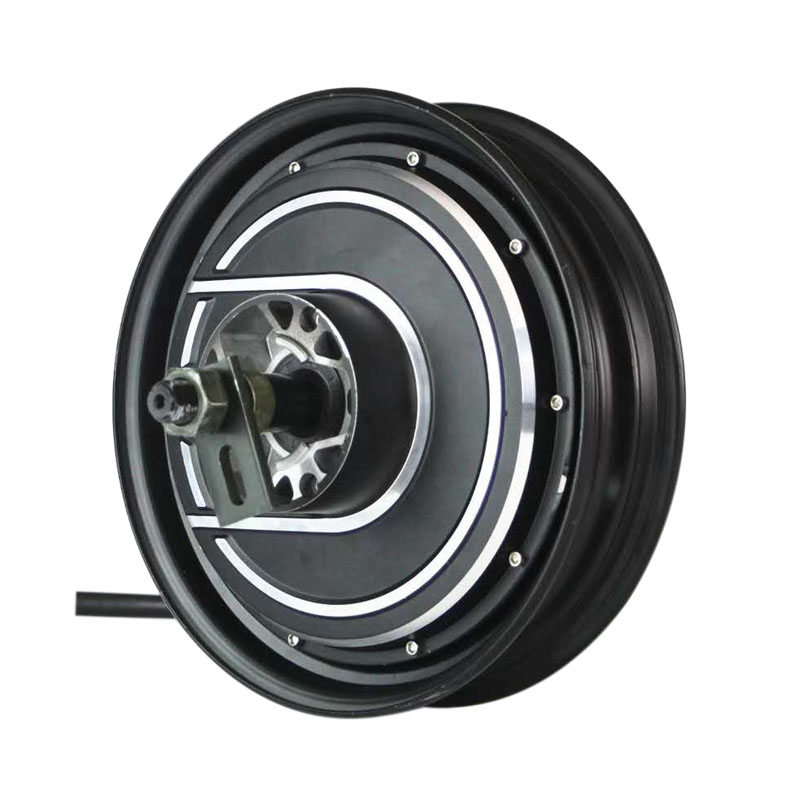

QSMOTOR 212 10inch 7000W Hub Motor
QS212 10inch 7000W Hub Motor 70H V4 Type
Motor Specification:
- Motor Type: BLDC Hub Motor with Permanent Magnet
- Motor design: Double axle out with 10inch rim
- Rim size:2.15-10
- Matching Tire: 3.0-10, 3.5-10,100/90-10,90/80-10
- Magnet Height: 70MM
- Pole Pairs: 16 pairs
- Rated Power: 7000W
- Peak Power:14000W
- Rated Voltage: 48V,60V,72V
- Speed Options:
| 10inch 7000W V4 | 70020× | 72V | 1778 | 130 | Ultra High Speed Type |
| 70030× | 72V | 1450 | 106 | High Speed Type | |
| 70039× | 72V | 1299 | 95 | Balance Type | |
| 70040× | 72V | 1088 | 80 | High torque Type |
- Max Torque: 300N.M
- Max Efficiency: 91%
- Continious current:100A at 72V
- Max current:200A
- Brake type: Disc brake
- Rear Fork width for installation: 230mm
- Axle dia: M18
- Cross Section of Phase wire: 16 mm2
- Hall sensor phasing angle: 120 degree
- Temperature Sensor: KTY83
- Max. Working Temperature: 70 degree, Peak 120 degree
- Waterproof Grade: IP66
- N.W./ G..W. : 19kgs / 20kgs
- Package Size: 34*34*33CM
