QS260 12inch 10000W 70H E-Scooter Hub Motor

Category: .

QS260 12inch E-Scooter In-Wheel Hub Motor 10000W V4 Type

Motor Specification:

  1. Motor Type: Brushless DC Hub Motor with Permanent Magnets and Hall sensors
  2. Motor design: Double axle out with 12inch Aluminium rim
  3. Rim size:3.5×12
  4. Matching Tire: 130/70-12
  5. Magnet Height: 70MM
  6. Pole Pairs: 16 pairs
  7. Rated Power: 10000W
  8. Peak Power: 200000W
  9. Rated Voltage: 72V( 72-144V Can be optional)

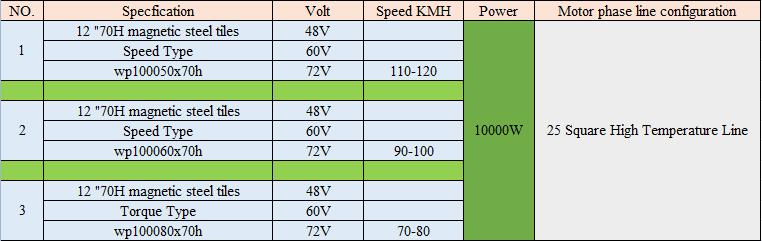

  10. Speed Options:



  1. Max No-load RPM:1500RPM
  2. Max Torque: 350N.M
  3. Max Efficiency: 91%
  4. Continious current:140A
  5. Max current:200A ,Peak 290A
  6. Brake type: Disc brake
  7. Rear Fork width for installation: 230mm
  8. Hall sensor: Two group of Hall sensors(Model:SS413F)
  9. Winding Frame material: Aluimium
  10. Cross Section of Phase wire: 25mm2
  11. Hall sensor phasing angle: 120 degree
  12. Temperature Sensor: KTY83-122
  13. Working Temperature: 70-120 degree, Peak 150 degree
  14. Waterproof Grade: IP66
  15. Working system: S9
  16. Cooling method: Natual
  17. W./ G..W. : 35kgs / 36kgs
  18. Package Size:43*43*40CM
