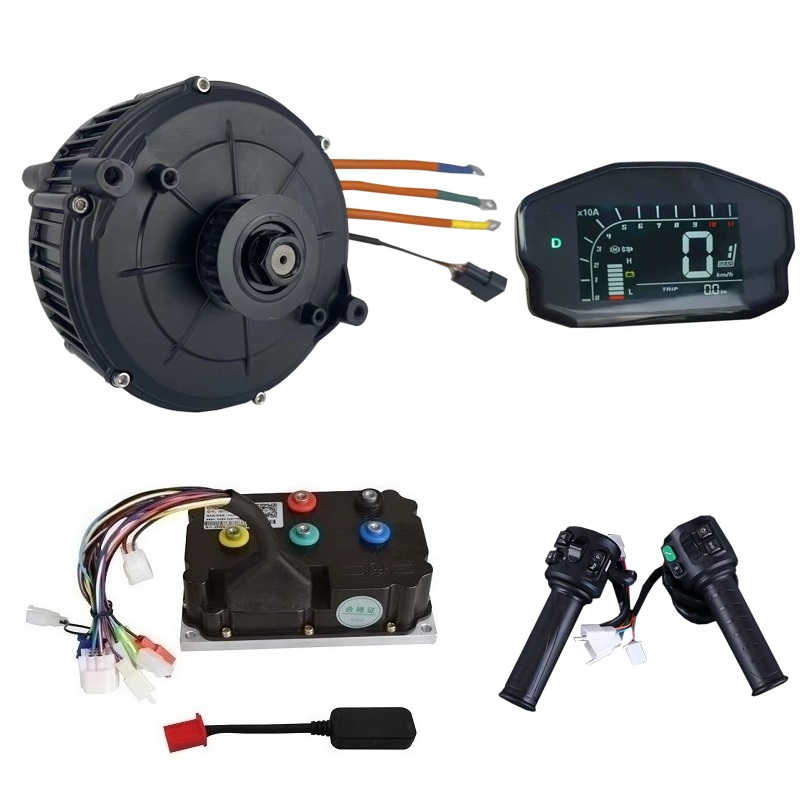

QS165 5000W E-Motorcycle Powertrain Kits
QS165 5000W Mid-drive Motor Controller Kits
Combo 1:
- QS165 5000W Mid-drive Motor encoder version
- Far-driver Controller ND72530B/ND72680B
- DKD-061 Speedometer
- Twist throttle
Combo 2:
- QS165 5000W Mid-drive Motor Hall version
- Far-driver Controller ND72450
- DKD-061 Speedometer
- Twist throttle
- Wiring harness
- 72V-12v 10A DC/DC Conveter
- Key switch
QS165 Mid-Dirve PMSM Motor
Controller Specification:

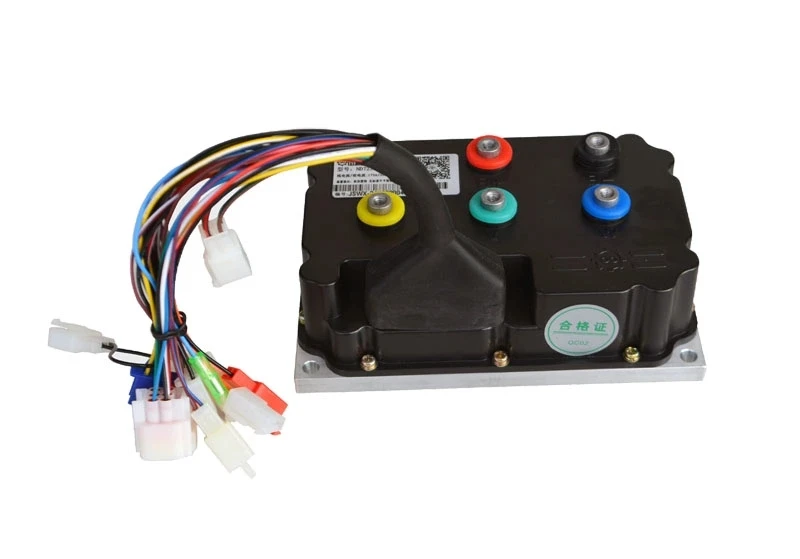

Sine Wave FOC BLDC Motor Controller ND72680B(Encoder version)
1. Controller Type: Sine Wave FOC Controller
2. Model Number: ND72680B
3. Max. Bus Current:180A
4. Max. Phase Current:680A
5. Working Voltage:48V/60V/72V
6. Compatible Motor Power: 5000W

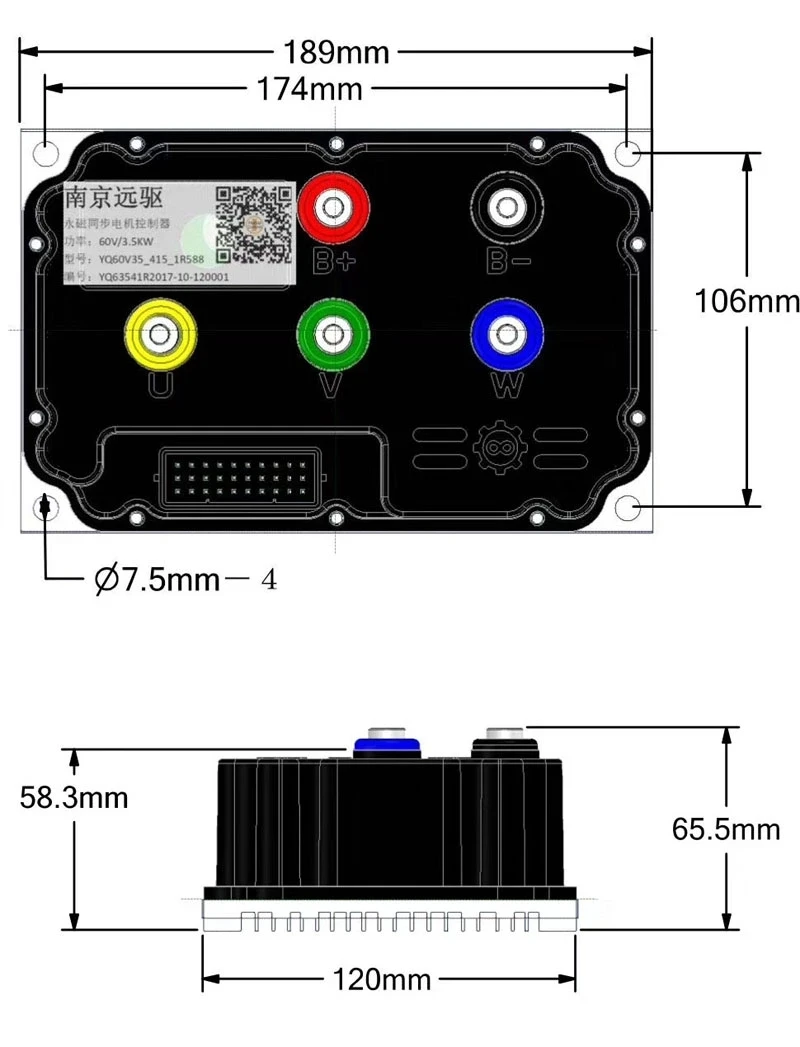

7. Size: 189mm*121mm*63.5mm 7. Weight:1.7KGS
Controller APP Monitor(Android and IOS)
061-DKD Adjustable Speedometer
Display: LCD 4.3inch
Voltage:48V,60V,72V(72V as default)
Protection: IP67
Size:Length-162.5mm, Width-93.7mm
Functions:
Displays Fault Code,Travel range, Speed, Battery volume, lighting and so on
Adjustable settings
Support CAN conmmunication,ONE-LIN (ONE-LIN as default)
Dimensions:
Multi-functions Twist hand throttle
