12inch 10000W Hub Motor Kits

With maximum speed around 120kph with extreme acceleration, suitable for 12inch electric scooter upgrade or gas line scooter electric retrofit

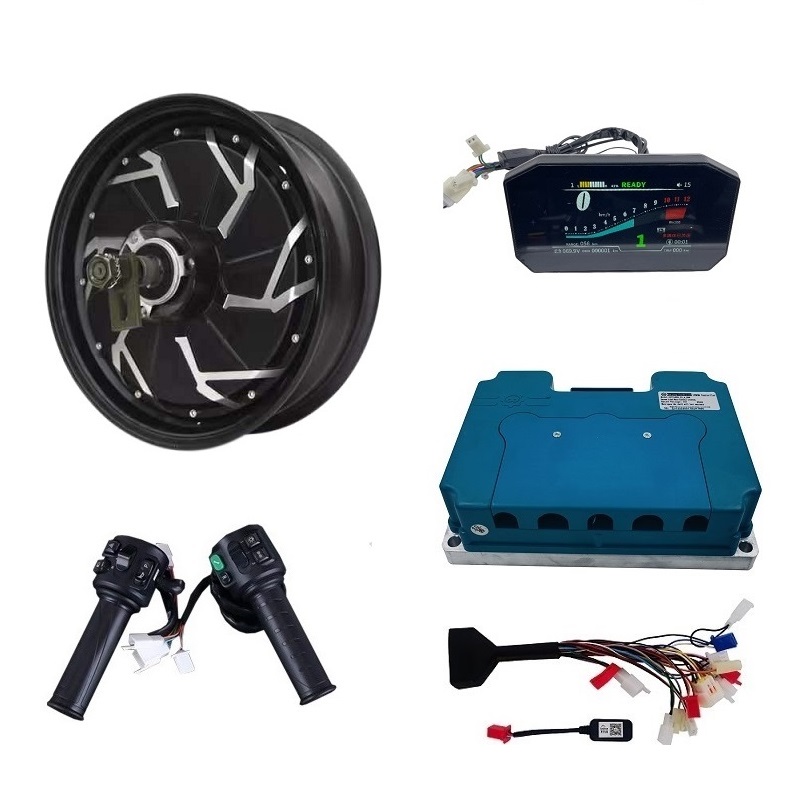

Combo:

1 pcs QS260 12inch 10000W Hub Motor

1 pcs Fardriver Controller ND721000

1 pcs TFT Speedometer

1 pcs Twist throttle

Motor specification:

1. Motor Type: Brushless DC Hub Motor with Permanent Magnets and Hall sensors
2. Motor design: Double axle out with 12inch Aluminium rim
3. Rim size:3.5×12
4. Matching Tire: 130/70-12
5. Magnet Height: 70MM
6. Pole Pairs: 16 pairs
7. Rated Power: 10000W
8. Peak Power: 200000W
9. Rated Voltage: 72V( 72-144V Can be optional)
10. Speed: 120KPH

11. Max No-load RPM:1500RPM
12. Max Torque: 350N.M
13. Max Efficiency: 91%
14. Continious current:140A
15. Max current:200A ,Peak 290A
16. Brake type: Disc brake
17. Rear Fork width for installation: 230mm
18. Hall sensor: Two group of Hall sensors(Model:SS413F)
19. Winding Frame material: Aluimium
20. Cross Section of Phase wire: 25mm2
21. Hall sensor phasing angle: 120 degree
