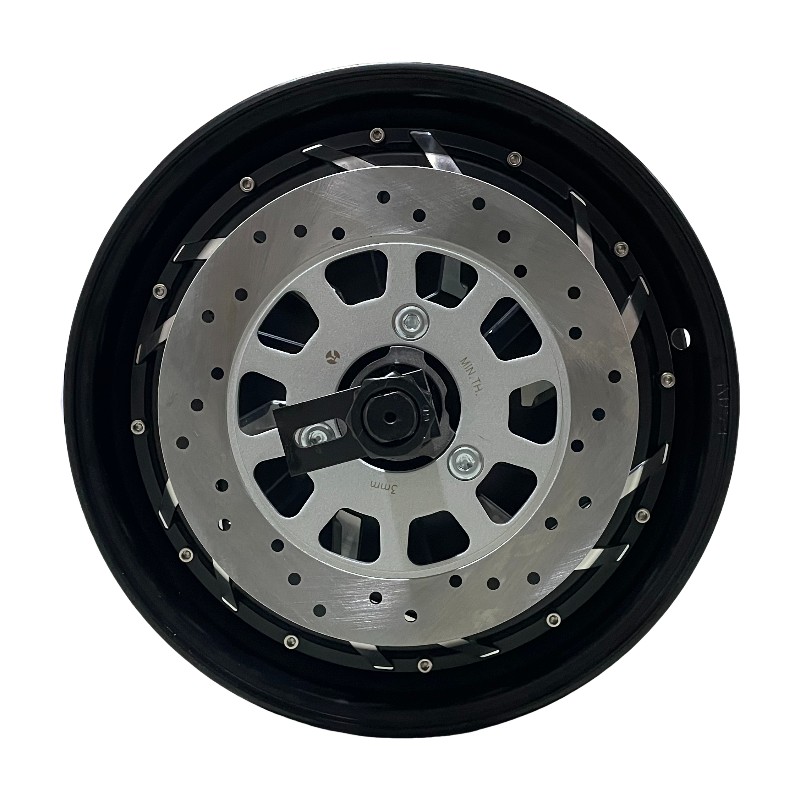

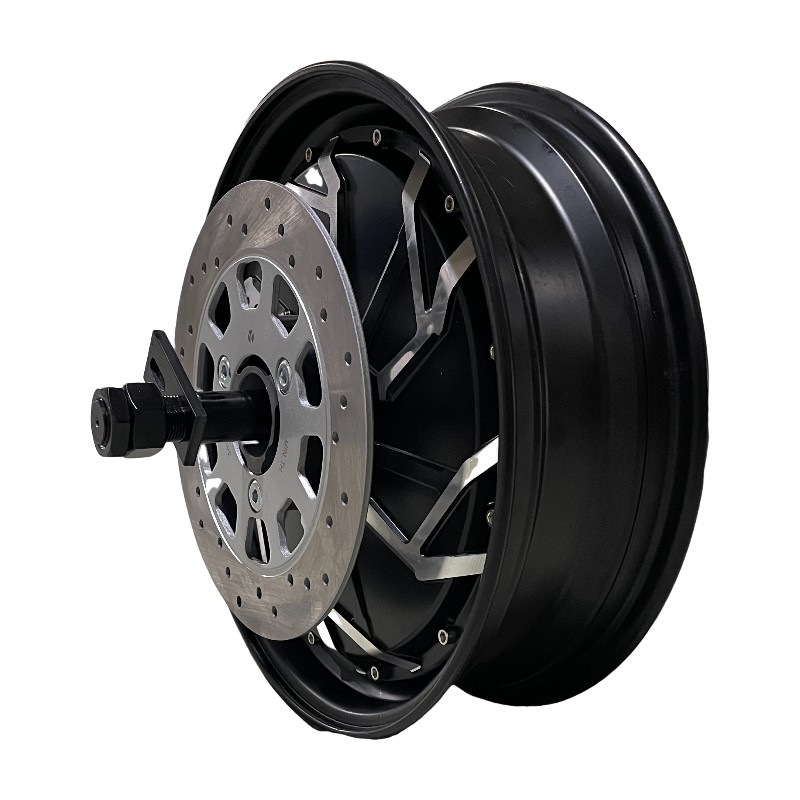

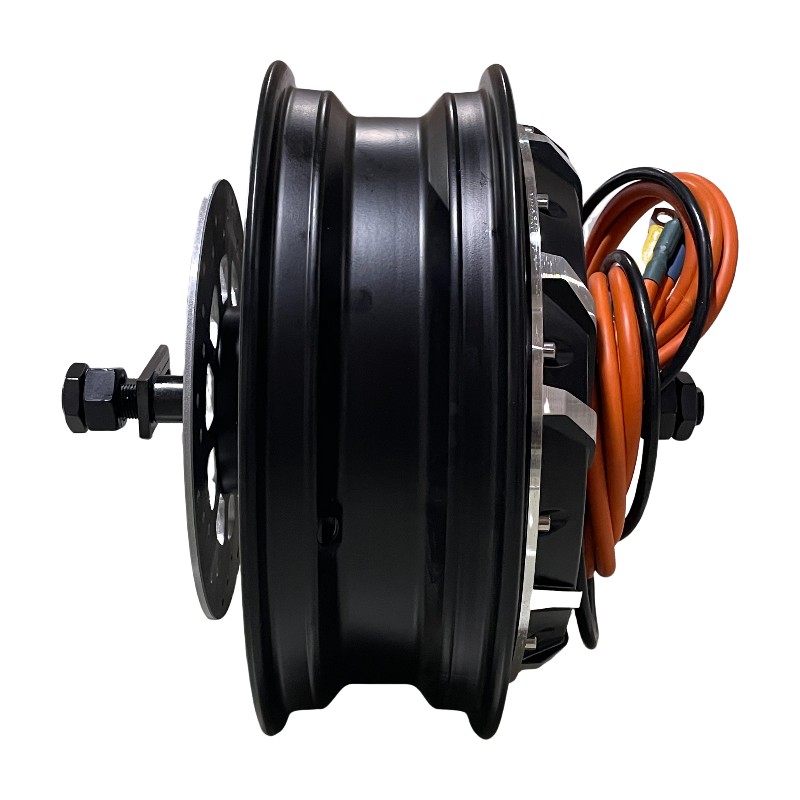

QS260 12INCH 8000W 60H V4 Wheel Hub Motor

12inch 260 E-Scooter Hub Motor(60H) 8000W V4 Type

Motor Specification:

1. Motor Type: BLDC Hub Motor with Permanent Magnets
2. Motor design: Double axle out with 12inch rim
3. Rim size:3.5×12
4. Matching Tire: 120/70-12, 130/70-12
5. Magnet Height: 50MM
6. Pole Pairs: 16 pairs
7. Rated Power: 8000W
8. Peak Power: 15000W
9. Rated Voltage: 72V

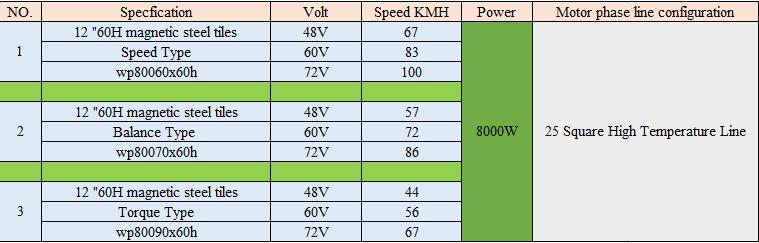

10. Speed option:

11. Max Torque:300N.M
12. Max Efficiency: 89%
13. Continious current:120A
14. Max current:200A
15. Brake type: Disc brake
16. Rear Fork width for installation: 230mm
17. Hall sensor: Two group of Hall sensors(Model:SS413F)
18. Winding Frame material: Aluimium
19. Cross Section of Phase wire: 16mm2
20. Hall sensor phasing angle: 120 degree
21. Temperature Sensor: KTY83-122
22. Working Temperature: 70-120 degree, Peak 150 degree
23. Waterproof Grade: IP66
24. Working system: S9
25. Cooling method: Natual
26. Color: Black
27. W./ G..W. : 20kgs / 22kgs
28. Package Size: 44*43*34CM
