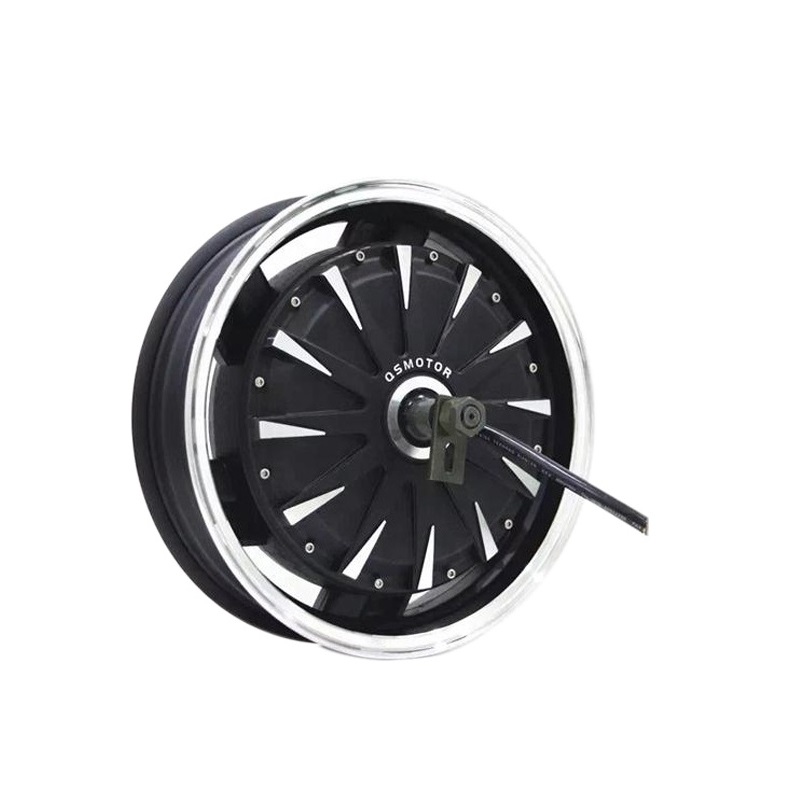

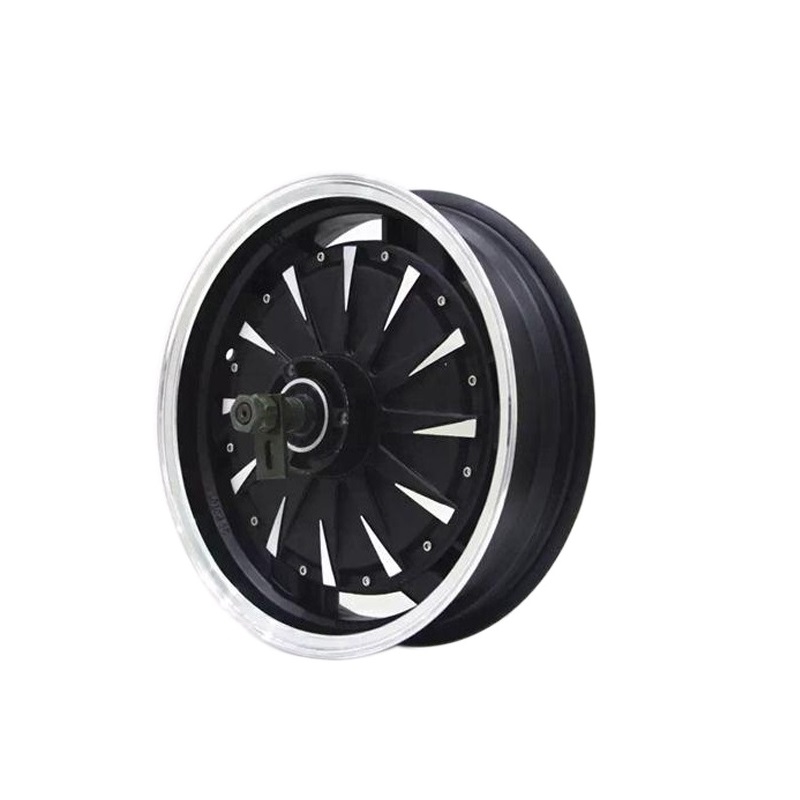

QS260 14inch 1500W V1 E-Scooter Hub Motor

QS254 14inch E-Scooter Hub Motor(30H) 1500W V1 Type

Motor Specification:

1. Motor Type: BLDC Hub Motor with Permanent Magnet
2. Motor design: Double axle out with 14inch rim
3. Rim size:2.5×14,3.5×14
4. Matching Tire: 100/90-14, 120/70-14, 130/70-14
5. Magnet Height: 30MM
6. Pole Pairs: 24 pairs
7. Rated Power: 1500W
8. Max Power: 2700W
9. Rated Voltage: 60V
10. Speed: 35KPH-60KPH
11. Max No-load RPM: 750RPM(Can be customized)
12. Max Torque: 98N.M
13. Max Efficiency: 86%
14. Continious current:36A
15. Max current:45A
16. Brake type: Disc brake
17. Rear Fork width for installation: 200mm
18. Cross Section of Phase wire: 4 mm2
19. Hall sensor phasing angle: 120 degree
20. Temperature Sensor: Optional
21. Working Temperature: 70 degree, Peak 120 degree
22. Waterproof Grade: IP67
23. W./ G..W. : 15kgs / 16kgs
24. Package Size: 44*43*34CM
