Daul 5000W 72V Electric Car Hub Motor Conversion Kit

The parts list as follows,

• 2units x QS260 5000W 45H V4 Single Shaft Hub Motor
• 2units x 5.0 x 12” Alloy Rim
• 2units x Kelly Controller KLS72680
• 1 unit x  Bluetooth dongle
• 1unit x Pedal Throttle
• 1unit x DKD LCD Speedometer

Note:

1. The kits not included the battery and disc brake set

2. The motor kits suits the vehicle total load under 1000kgs,max.speed about 40-90kph drived by 72V battery

3. Please contact the seller if you have future questions

Key Features,

1. The application of a hub motor can greatly simplify the structure of the vehicle. Traditional clutches, gearboxes and transmission shafts will no longer exist. This also means saving more space.

2. The Daul Controller has been assembled together with the Main contactor on the Alu. plate, so it will be much easier for play and connection

3. Control box combines forward, reverse, master switch and other functions

4. Regenerative Function is available

Items details:

1. QS260 Single Shaft Electric Car Hub Motor(45H) 5000W V4 Type

Motor Specification:

• Motor Type: BLDC Hub Motor with Permanent Magnets
• Motor design: 260 Single shaft out
• Bolts Pattern: 4 x 100MM
• Magnet: 45H Curved Magnets with SH(340Degree) Lever
• Pole Pairs: 16 Pairs
• Rated Power: 5000W
• Peak Power: 10000W
• Rated Voltage: 72V( 60V-96V Can be optional)
• Max No-load RPM: 1320RPM
• Max Torque: 230N.M
• Max Efficiency: 90%
• Brake type: Disc brake
• Stator Frame material: Aluimium
• Cross Section of Phase wire: 16mm2
• Hall sensor phasing angle: 120 degree
• Temperature Sensor: Attached
• Working Temperature: 70 degree, Peak 120 degree
• Waterproof Grade: IP54
• W./ G..W. : 18kgs / 20kgs
• Package Size: 44*43*41C

Motor drawing:



2.Fardriver NS72680/ND72680 Electric Motorcycle Controller 680A Programmable with Bluetooth

FarDriver controller is sine wave type controller, which is brushless DC controller with self-learning function. Generally, it matches well with QS Motors, if you want to match with new brand motor, some parameters should be tested by yourself.



Key Features

1). All the raw materials are imported, using high-performance Moss tube

2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board

3). Small in size

4). High efficiency, low temperature rise, small running current

5). With self-learning function, excellent commonality

6). The app compatible with Android and Apple

7). With flux weakening function.(The product does not contain magnetism)

Main Specification:

1. Model Number: NS72680 ( Sometimes the series number also print ND72680)

2. Peak. Bus Current: 350A

3. Peak. Phase Current: 680A

4. Working Voltage: 48V/60V/72V

5. Peak voltage: 88V

6. Compatible Motor Power: 3000W-6000W

7. Size: 180mm*118mm*70.2mm



P.S.

1. The controller colors are blue and black, randomly sent.

2. Controller includes harness, screws, and bluetooth adaptor. ( like the following picture )

3.0-5V Electric Car Throttle Pedal

• Throttle Pedal Hall type : JKH model (match with our motor & controller)
• Input voltage: 5V 12V 15V 24V 36V 48V 60V 72V 84V 96V 120V
• Output voltage: 0-5V5-0V1-4.2V4.2-1V0-10V10-0V
• Deafult: 5v input voltage (depends on controller design, for our matched controllers, you can choose 5v input voltage), 0-5v output voltage.

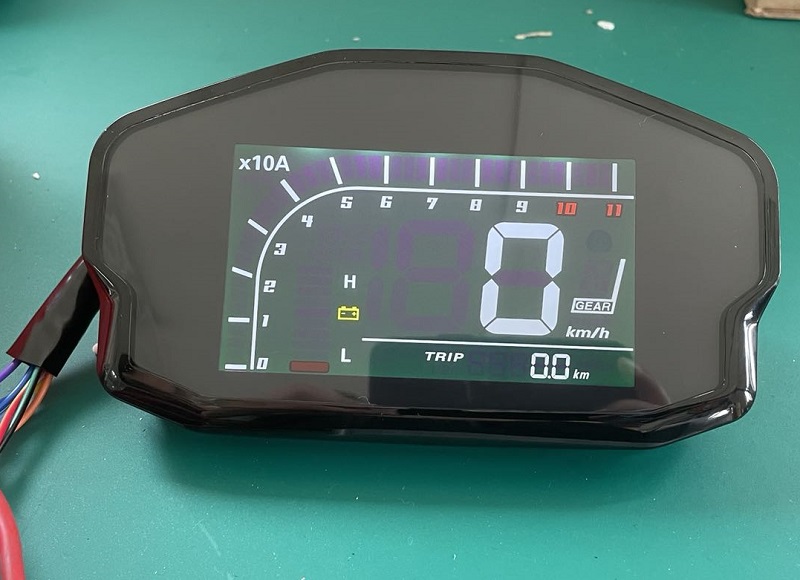

4. DKD LCD Speedometer

Model: 061 Adjustable Speedometer

Display: LCD 4.3inch

Voltage:48V,60V,72V(72V as default)

Protection: IP67

Size:Length-162.5mm, Width-93.7mm



Functions:

Displays Fault Code,Travel range, Speed, Battery volume, lighting and so on

Adjustable settings

Support CAN conmmunication,ONE-LIN (ONE-LIN as default)



Dimensions:



Sample Vehicle:
